High-quality black LEDs with a black mask, contrast up to 3000:1, make the picture more clear, delicate and bright. Lower power consumption, low noise, low radiation, can be embedded into/stick the wall, the thickness of only 8cm to make your space more spacious. The highly modular design could make a LED video wall as big as possible no any size limitation, bigger display area, wider view angle.

*Modular digital display technology
*Clear and vivid images, perfect video performance, wide viewing angle
*Light and slim design*Plug & play display assembled
*Fixed with magnet and screws
*Seamless design improves the display quality

The horizontal and vertical angle of 160 degrees.

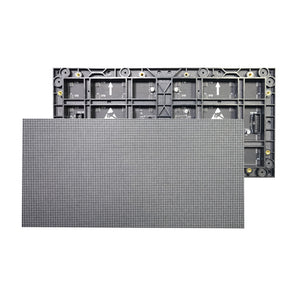

Indoor LED Display Modules made with regular brightness LED, there are P2.5, P2.976, P3, P3.076, P3.91, P4, P4.81, P5, P6, P7.62, P10 LED Display Screen Modules.

Conventional Pitch LED Display Modules (P2.5 and Above)
Common Models:
P2.5, P3, P4, P5, etc. (Lower cost as pitch increases.)

Key Features:
* Cost-Effective: Ideal for budget-conscious projects or long-distance viewing.
* Adjustable Brightness: Typically 500-1500 nits, adaptable to varying indoor lighting (e.g., bright shopping malls).
* Easy Maintenance: Larger module size simplifies repairs and replacements.

Applications:
* Commercial Displays: Shopping mall ads, hotel information screens, stage backdrops (for distant audiences).
* Public Services: Airport/subway dynamic signage, university auditoriums.
* Temporary Events: Exhibitions, festivals, and rental screens.

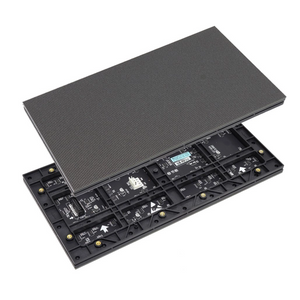

M-HD Series Small pixel pitch LED module we also named fine pixel pitch LED Tile, which is specified the LED Display Modules with smal pixle pitch within 2mm, like LED display tiles 2mm, 1.875mm, 1.66mm, 1.56mm, 1.25mm and etc.

The fine pixel pitch LED display modules in a fixed size PCB has much more LEDs which can produce high definition pictures. So the small pixel pitch LED screen modules are widely used for high-end LED display projects, Television studio, Government surveillance screen, and any condition that required very delicate picture quality.

Key Features:
* High Resolution: More pixels per unit area, suitable for close-up viewing (e.g., meeting rooms, control centers).
* Low Brightness, High Grayscale: Moderate brightness (typically 300-800 nits) with superior color accuracy, reducing glare in indoor environments.
* Seamless Splicing: Minimal bezel gaps for a more uniform display.
* Advanced Technology: Requires solutions for heat dissipation, driver IC integration, and dead pixel control due to miniaturization.

Applications:
* High-End Commercial: Corporate boardrooms, brand showrooms, broadcasting studios.
* Professional Use: Security monitoring centers, medical imaging displays, virtual production (e.g., XR stages for filmmaking).
* Emerging Markets: Home theaters (P1.0 and below), interactive displays in luxury retail stores.

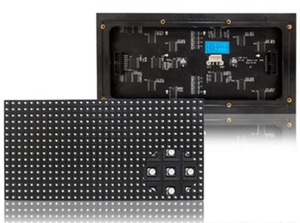

High brightness, visible to the sunlight.High protection, dustproof, waterproof. Silica gel covered on the front side, and backside with a professional three anti-paint processes. The highly modular design could make a LED video wall as big as possible no any size limitation, bigger display area, wider view angle.
Key Features & Advantages

1. Robust Waterproof Design
IP65 Protection: Sealed with waterproof masks, conformal-coated PCBs, and weatherproof cabinets to prevent moisture, dust, and corrosion.
Durable Materials: Aluminum alloy housings and anti-UV coatings enhance longevity in outdoor environments.
2. High Brightness & Visibility
5000+nits Brightness: Equipped with high-intensity LED chips for clear visibility under direct sunlight.
Wide Viewing Angles: 140°–160° horizontal/vertical viewing angles ensure consistent image quality from different perspectives.
3. Reliability & Maintenance
Temperature Resistance: Operates in -30°C to 60°C with built-in cooling systems (fans/heat sinks) for stable performance.
Easy Repair: Front/rear service options and modular design simplify maintenance.
4. Energy Efficiency & Smart Control
Auto Brightness Adjustment: Light sensors optimize power consumption based on ambient conditions.
Remote Management: Real-time monitoring and content updates via centralized control systems.

The Outdoor LED Module is used together with an outdoor LED display cabinet together, which is installed outside for advertising, promotion and etc.When people go outside to enjoy their lives, they will have a glance at the display screen at a distance. Of course, it will be placed in places like the stadium, rainproof and snowproof will have to be counted for the basic design, all components inside have to be sealed up for its life circle.
