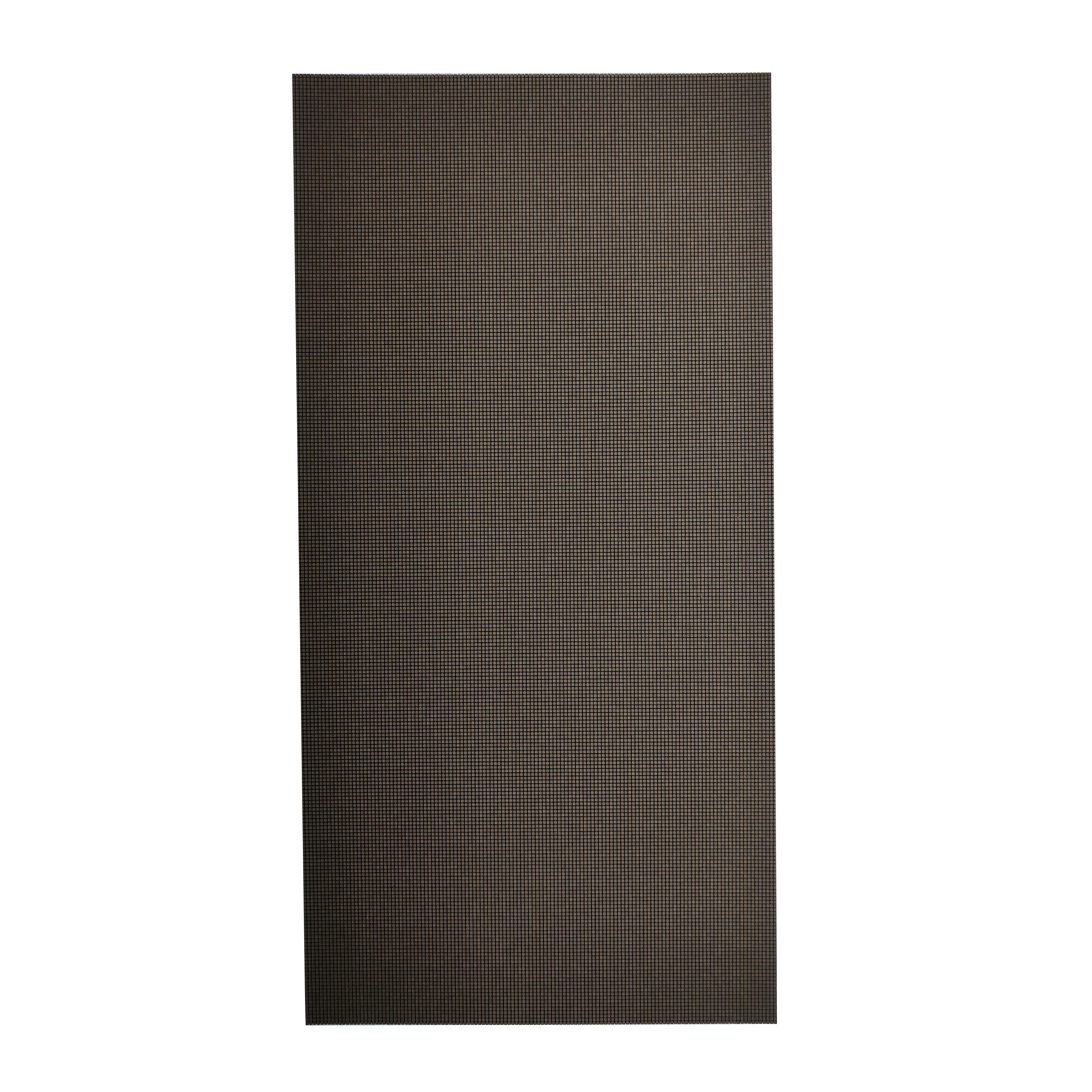

P1.25 320x160mm Indoor Flexible LED Display Panel
PARAMETER
| Items | HKXR-C1.2-PLUS |
| Technical Parameters | |
| Pixel Configuration | 1R1G1B Full Color |
| Encapsulation | SMD1010 |
| Pixel Density (dots/m2) | 600625 |
| Module Size (mm) | 3200x160x8.6 (Width x Height x Thickness) |
| Moduel Resolution (dots) | 248x124 |
| Scan Mode | 1/62 |
| Refresh Rate (Hz) | 3000-3840HZ |
| Frame Rate (Hz) | 50&60 |
| Gray Scale (bit) | 12-16 adjustable |
| Data Interface Type | HUB75 |
| Moduel Barcket Materials | Silicon Rubber Soft Bracket |
| Module Weight (Kg/pcs) | 0.175 |
| Cabinet Size | Can be ODM freely upon module sizes |
| Cabient Material | Powder Coated Sheet Metal Steel Cabinet |
| Cabinet Eveness (mm) | ≤ 0.3 |
| IP Protection Grade | IP45 |
| Assembly / Maintanance Type | Front & Rear Assembly / Maintenance |
| Photoelectronic Special Features | |
| Brightness (nits) | ≥600 |
| Color Temperature (K) | 3000—10000 Adjustable |
| Brightness Eveness | ≥97% |
| Horizontal / Vertical Veiw Angle | ≥160°/≥140° |
| Contrast Ratio | 5000:1 |
| Electrical Parameters | |
| Module Input Voltage DC（V） | 5 |
| Moduel Maximum Current DC（A） | 3 |
| Module Maximum Power Consumption（w/pcs） | 15 |
| Working Input Voltage AC（V） | 110—220 |
| Peak Power Consumption（w/m2） | 800 |
| Average Power Consumption（w/m2） | 270 |
| Application Parameters | |
| Typical Life Span（hrs） | 100,000 |
| Working Temperature（℃） | -10—50 |
| Storage Temperaure（℃） | -20—60 |
| Working Humidity（RH） | 20—85% (No Condensation) |
| Storage Humidity（RH） | 20—80% (No Condensation) |

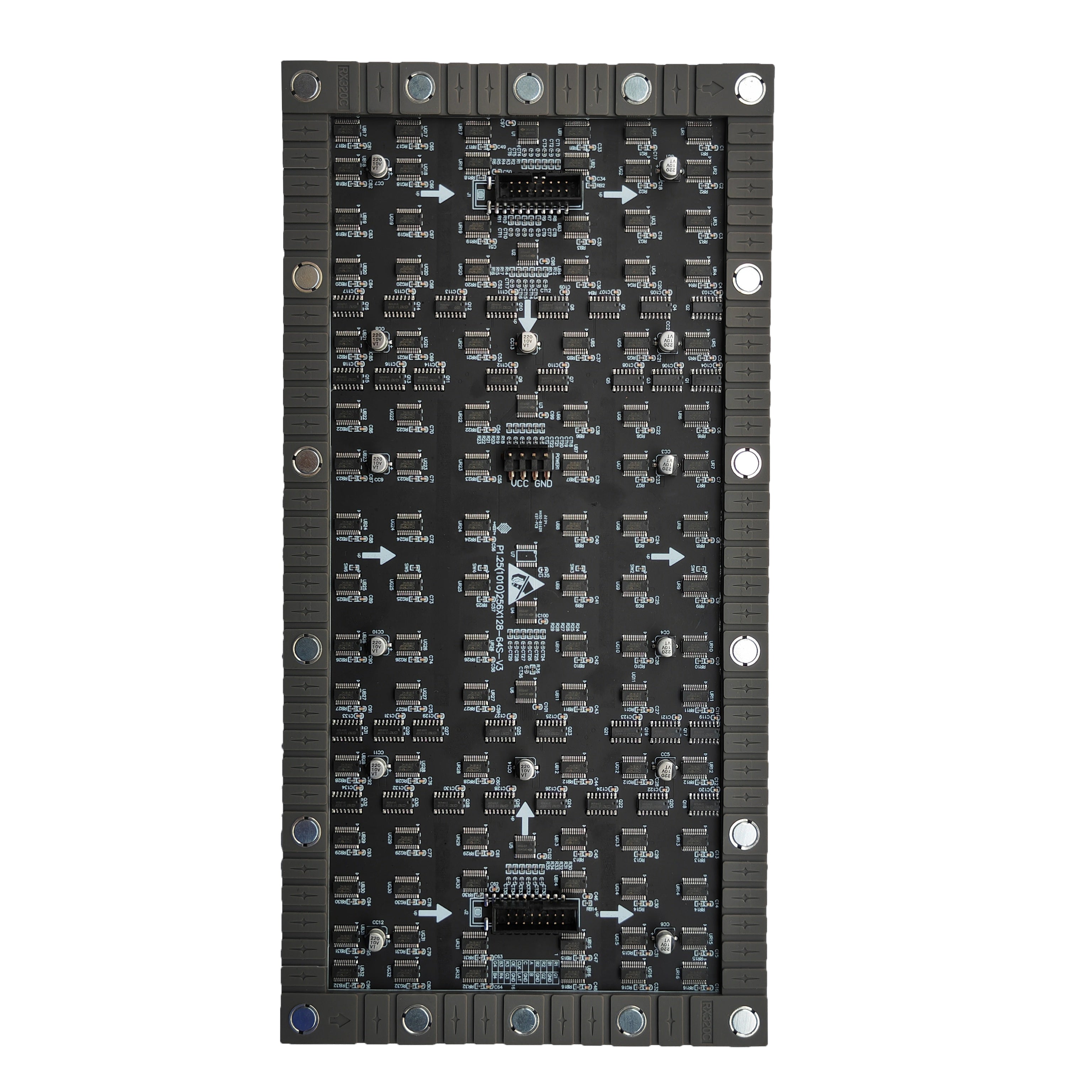

The Silicon Based Flexible LED Module adds silicone frame at the backing of LED Tile.

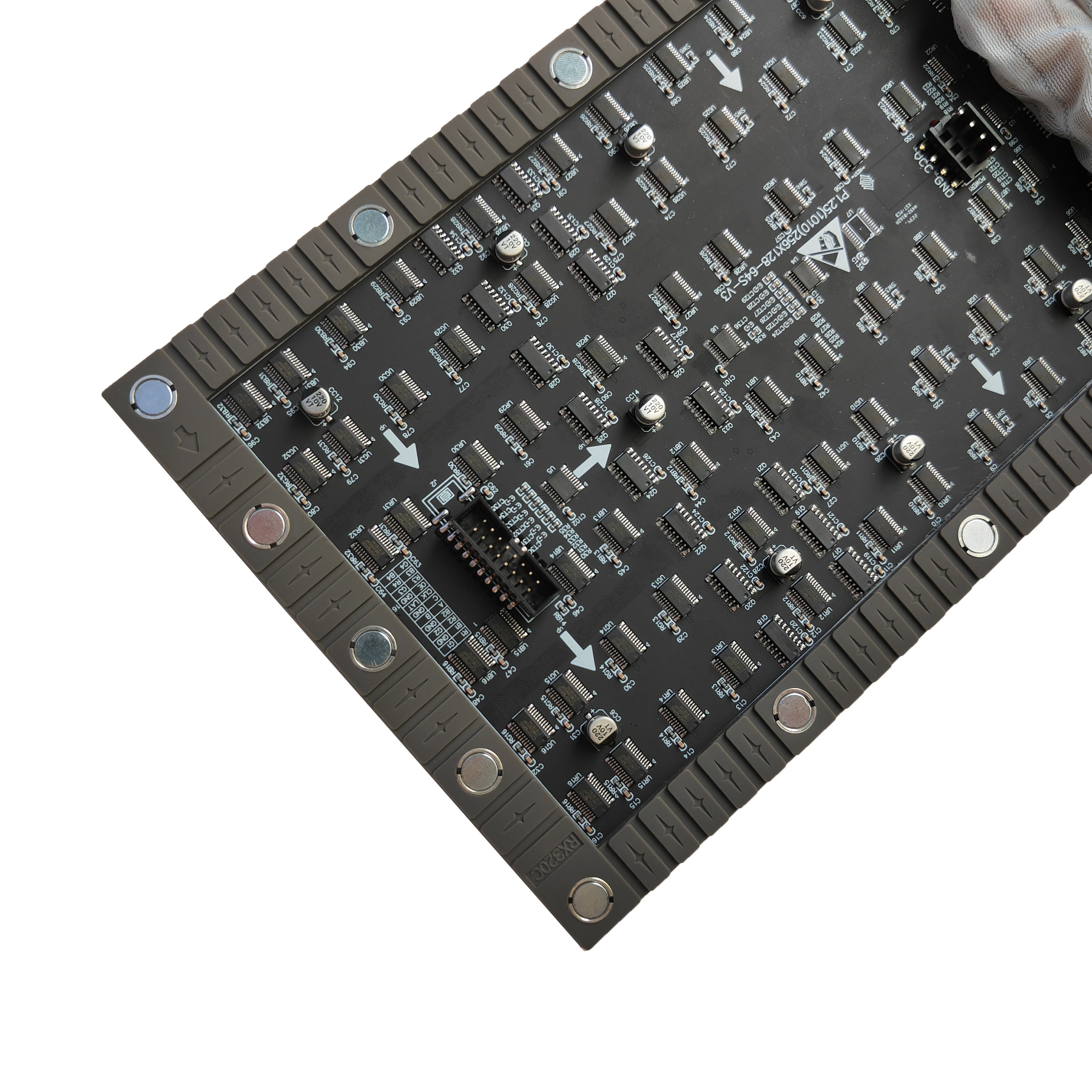

With embedded magnets inside the silicon base, the flat even backing will perform stably during installation which reduce stitching gap.
 |
 |
FEATURES
* HIGH FLEXIBILITY

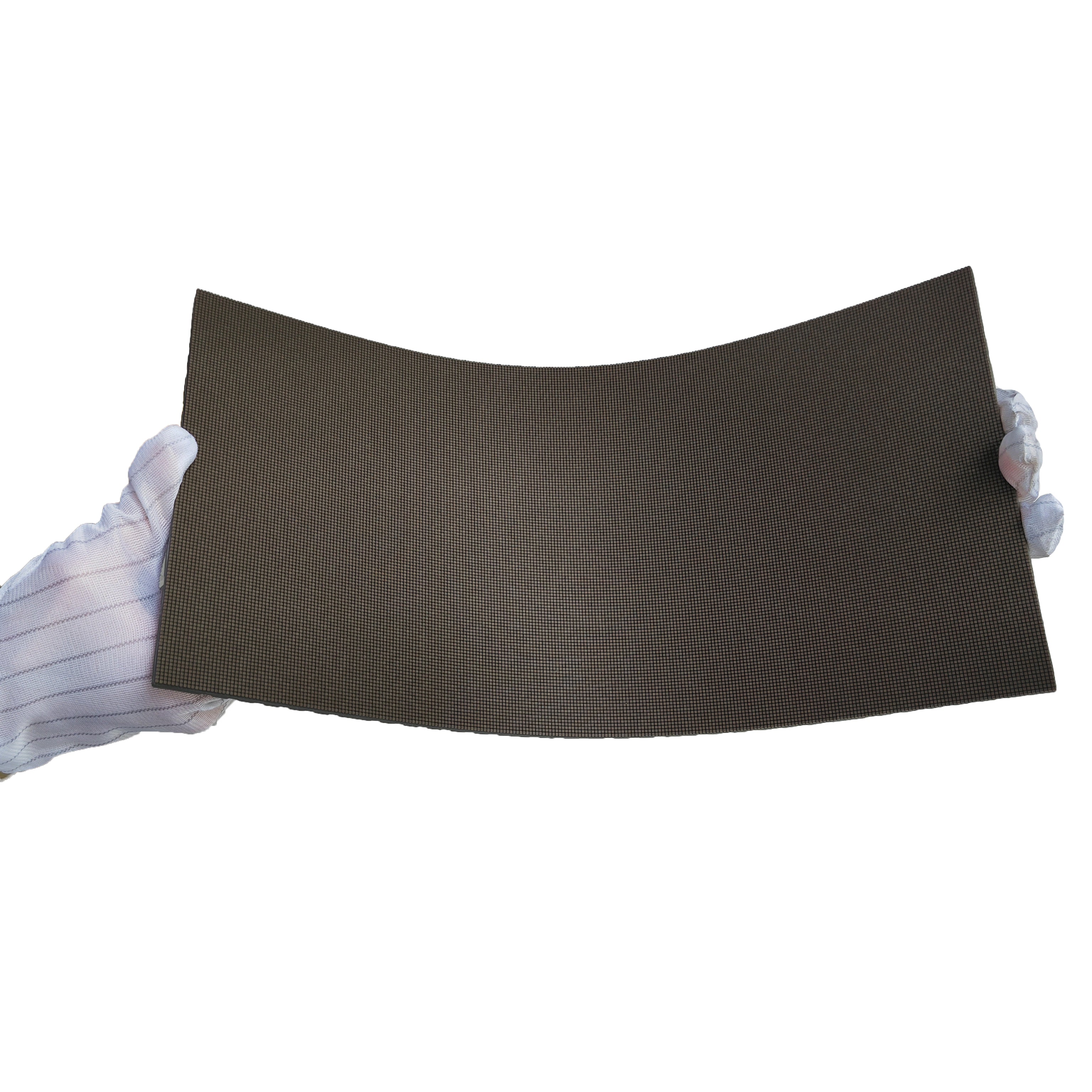

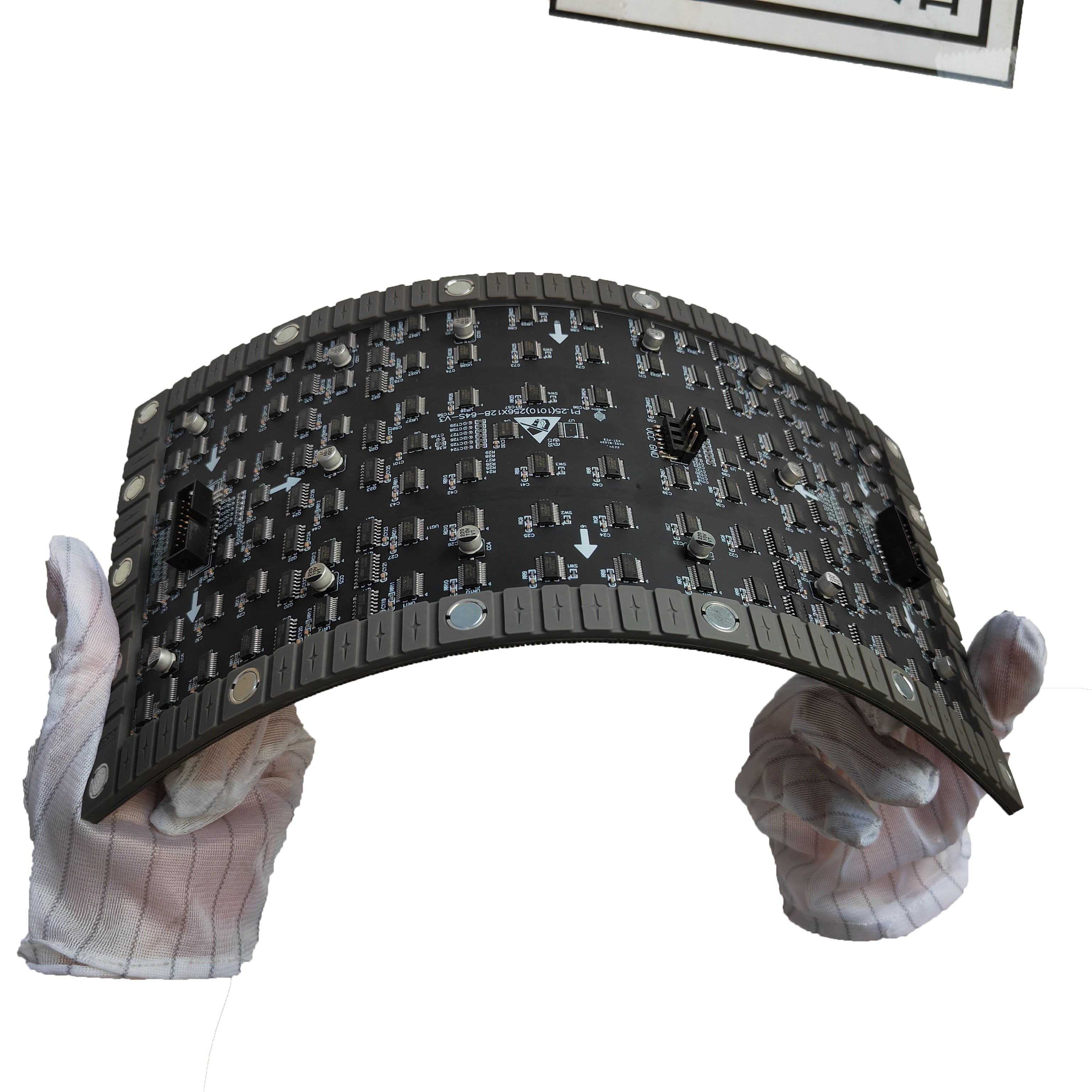

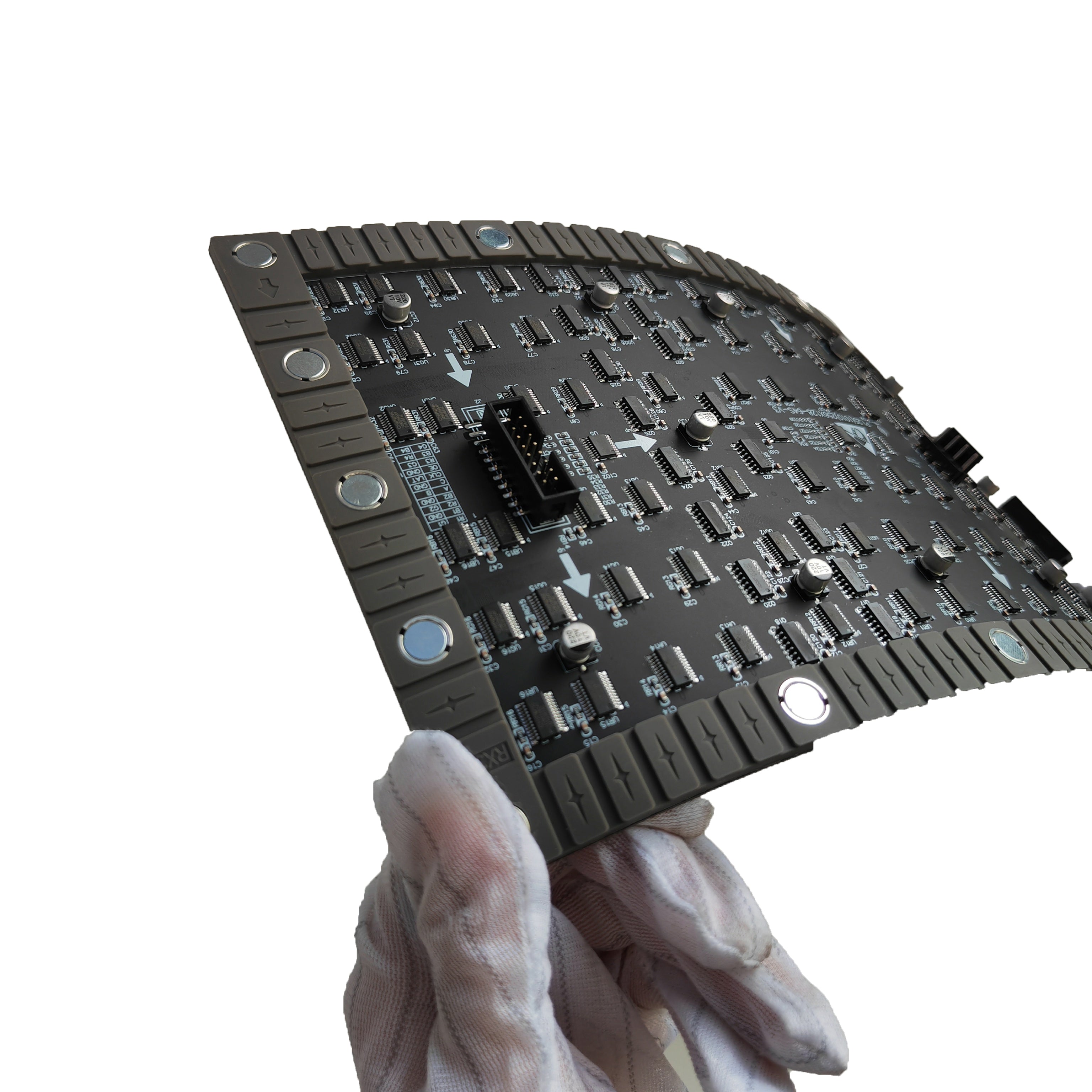

The Flex LED Module is able to bend front and back into a certain radian, which is widely used for any design like rolled, bend and swing shaped needs.
 |
 |
* SUPER THIN and LIGHT
The Flex Tile is a few hundred grams per tile and thin (<6mm in thickness).
* FRONT or REAR SERVICE
With magnets, the Flexible LED Display module can be installed by sticking to structure， which support for taking off from front.
 |
 |
IMPORTANT ALERT!
* Operators must wear anti-static gloves when assembling modules.
* It is forbidden to splash water on the screen or module. For example, when cleaning dust, do not use rags, moisture-containing objects, or hard objects to clean. You can use an anti-static soft-bristled brush to clean.
* The relative humidity of the working environment should be within the range of 20% to 75%. Place the module in a dry place before assembly to ensure that the module is stored in an environment where the temperature is not higher than 30°C and the humidity is not higher than 65%.
* It is forbidden to tear or pull directly with violence. When unplugging and plugging in wires, pull them out gently to avoid breaking the copper pillars and damaging the PCB with excessive force.
* It is prohibited to use galvanized square pipes for installation. Galvanized square pipes cannot guarantee flatness. It is recommended to use iron box spraying for installation.
*It is recommended to use spraying process for simple arc-shaped and cylindrical sheet metal iron boxes, which are easy to install and have good flatness.
* The bending angle of the module is between 158°~180°. It is prohibited to bend the module violently and repeatedly.
